As you all know already, nothing is new and this blog is no exception. It's full of pictures of cars and bikes, mostly stolen from somewhere or other and the odd bit of useful & not so useful information for your enjoyment.







Monday 30 August 2010

Monday 23 August 2010

pan-ning

safe

the first set of bars i made cracked yesterday, while i was out for a ride.
turns out the gasless mig i used did not get any penatration, so i am suprised they lasted this long.

Wednesday 18 August 2010

busy doing nothing

a work in progress

Saturday 14 August 2010

tanks..

springer bar adaptor

 I wanted to be able to change that bars on my springer, but was not to happy with the risers i had or the way they fitted. i could have just changed the top yoke for one with ears and use dog bones, but besides finding nice ones there's the cost, i did not want to use short risers and dog bones just made some bars and just welded them to the yoke.

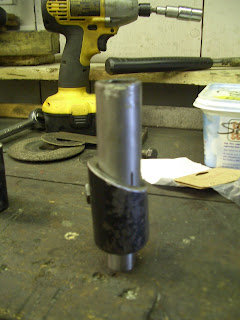

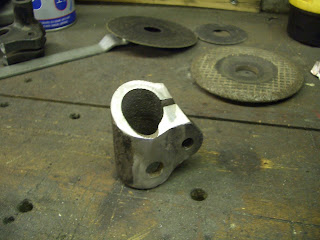

Anyway none of these were really working for me for one reasonor another. So here is the idea thats been rolling round me head, bore out a panhead one piece riser so its all 1", trim the mounting areas, cut in half and shape, make a spacer that is the id of the bars and bolt to the rear legs, then i could slid the bars and the clamp over and tighten. Then when i want to change the bars i can.
Thats the plan anyway and here is how they look.






i think i will have the clamp bolts on the inside of the bars though.

Thursday 5 August 2010
